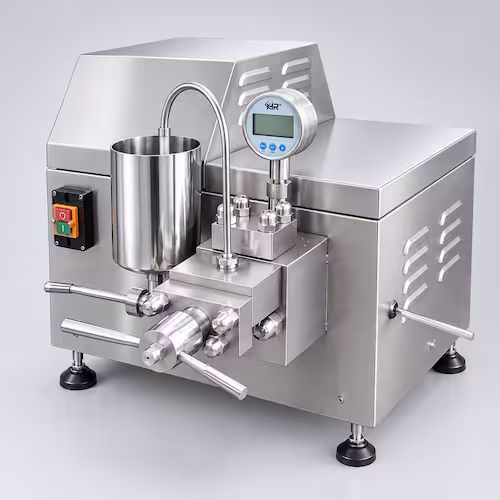

Laboratory High Pressure Homogenizer: 7 Powerful Benefits

Introduction of Laboratory High Pressure Homogenizer

A laboratory high pressure homogenizer is an advanced piece of equipment that subjects materials to extreme pressure to achieve uniform particle size reduction, emulsification, and cell lysis. This process is critical in industries such as food and beverage, pharmaceuticals, cosmetics, and biotechnology, where consistency and quality are essential. In the realm of industrial processing and laboratory applications, precision and efficiency are paramount. SeFluid proudly introduces the laboratory high pressure homogenizer series, specifically engineered to meet the stringent demands of various industries.

Specification

Max. Pressure: 200 Mpa
Power: 1.5-3 kw
Capacity: 5-30 L/h
Viscosity: 2000 cp

How Laboratory High Pressure Homogenizers Work

High pressure homogenizers, particularly those used in laboratory settings, are designed to process small volumes of samples for various applications such as breaking down cells, dispersing particles, or emulsifying liquids. These devices work by forcing the sample through a narrow gap under high pressure, which results in intense shear and impact forces that break up the material into smaller components or disperse it more uniformly.

Here’s a detailed explanation of how they typically work:

Sample Preparation:
- The sample is prepared according to the specific application requirements. This might include dilution, mixing with other substances, or pre-treatment steps.
Pumping System:
- The sample is pumped into the homogenizer using a positive displacement pump (such as a piston or diaphragm pump) that can handle high pressures.
- The pump delivers the sample at a controlled flow rate to ensure consistent processing.
Pressure Generation:
- The pressure is generated either by the pump itself or by a separate mechanism, depending on the design of the homogenizer.
- High pressures, often ranging from 5,000 to 60,000 psi (pounds per square inch), are achieved to create the necessary force for homogenization.
Homogenization Chamber:
- The sample passes through a homogenization chamber where it is subjected to high-pressure conditions.
- Inside the chamber, the sample flows through a valve system or a small orifice that creates a narrow gap.
- As the sample is forced through this gap, it experiences significant shear and turbulence, causing the particles to collide and break apart.
Shear and Impact Forces:
- The high velocity and pressure cause particles to collide with each other and with the walls of the chamber, leading to fragmentation.
- The size reduction and dispersion depend on the pressure applied, the viscosity of the sample, and the properties of the particles being processed.
Sample Collection:
- After passing through the homogenization chamber, the processed sample is collected in a container.
- Depending on the application, the sample may be ready for further analysis or additional processing steps.
Controls and Monitoring:
- Modern laboratory homogenizers often come with sophisticated control systems that allow precise adjustment of parameters such as pressure, temperature, and flow rate.
- Sensors and monitoring tools help ensure consistent and reproducible results.
Cleaning and Maintenance:
- Proper cleaning and maintenance are crucial to prevent contamination and maintain the performance of the homogenizer.
- Components that come into contact with the sample may need to be cleaned or replaced periodically.

Laboratory high pressure homogenizers are versatile tools used in a wide range of industries, including pharmaceuticals, biotechnology, food science, and materials research, among others. They are particularly useful when precise control over particle size distribution and homogeneity is required.

Homogenization Effects of Laboratory High Pressure Homogenizers

Shear Effect: The small gap between the homogenizing valve seat and core generates shear on the material particles.
Cavitation Effect: The rapidly extruded material experiences a sudden drop in pressure, ultimately achieving uniform distribution.
Collision Effect: The high-speed extruded material strikes the collision ring at a high velocity, resulting in impact fragmentation.

Applications of Laboratory High Pressure Homogenizer

A laboratory high pressure homogenizer is a versatile piece of equipment used in various scientific and industrial applications. It is designed to process small volumes of materials, typically for research and development purposes. Here are some common applications:

Nanotechnology:
- Nanoparticle synthesis: Homogenizers can be used to create stable suspensions of nanoparticles.
- Emulsion preparation: They are useful for creating nanoemulsions with droplet sizes in the nanometer range.
Pharmaceuticals:
- Drug delivery systems: Homogenizers help in the production of liposomes, microspheres, and other drug delivery vehicles.
- Suspensions and emulsions: They are used to make uniform suspensions and emulsions of active pharmaceutical ingredients (APIs).
Food Industry:
- Emulsification: For creating stable emulsions like mayonnaise, salad dressings, and milk.
- Particle size reduction: To improve texture and consistency in food products such as chocolate and peanut butter.
Biotechnology:
- Cell disruption: High-pressure homogenizers are often used to break open cells to release intracellular contents for biochemical analysis or to extract proteins, DNA, and other biomolecules.
- Enzyme stabilization: They can help stabilize enzymes by creating a protective environment around them.
Cosmetics:
- Creams and lotions: Homogenizers ensure that the particles in cosmetic formulations are finely dispersed and evenly distributed.
- Sunscreen formulations: They help in creating smooth and homogeneous sunscreen products.
Chemical Processing:
- Polymer processing: They can be used to disperse fillers and pigments into polymers.
- Adhesives and coatings: Homogenizers are useful for preparing adhesives and coatings with consistent viscosity and particle size.
Materials Science:
- Composite materials: They can help in the dispersion of reinforcing fibers and other additives into matrix materials.
- Ceramic slurries: They are used to prepare slurries for the production of ceramic components.

These applications benefit from the ability of high-pressure homogenizers to reduce particle size, disperse materials uniformly, and create stable suspensions and emulsions. The specific pressures and flow rates used will depend on the material being processed and the desired outcome.

Features of SeFluid's Laboratory High Pressure Homogenizer

Structural Features: Driven by a single ceramic plunger, precise control of the discharge flow rate. Optional plunger lubrication device available for longer seal life.
Flow Control: Variable frequency flow control system, adjustable as needed.
Pressure Control: Digital pressure sensing system, with an optional real-time pressure curve monitoring system.
Exhaust Method: Online exhaust, automatically restores the test pressure after exhaust.
Feeding Mode: Tri-Clamp self-suction device, with an optional feeding cup.
Sample Residue: Zero residue.
Component Technology: Homogenizing valve seat components can be made of materials such as zirconia, tungsten steel, diamond, or Stellite. Single or double-sided processing, double-sided use, doubling the service life. Secondary valve dispersion and emulsification make the material distribution more uniform and consistent.
